Ferox Specifications

Standard Equipment on Model

  • A choice of a diagonal or a french bed ( standard size double bed)
  • Single axle
  • Large pop-top with 4 vents
  • External fold out kitchen with a stainless steel work top
  • 220 volt fridge and separate freezer
  • Keyed alike door locks
  • Crockery (catering for 4 persons)
  • Double gas cooker with a 3 kg gas bottle.
  • Roll out awning with external storage bag

Each Ferox caravan is hand crafted and can be customised to meet individual requirements
(within the confines of the existing chassis and body shape).

The A-frame allows for mounting a standard enclosure for gas bottle or an extended enclosure to include a spare wheel.

Optional extras

  • Full tent for extended stays
  • Sides, front and draught skirt for standard awning
  • 12 Volt refrigeration systems with related charging and battery systems which can include solar power
  • Single or double doors
  • Optional 100 litre fresh water tank with high pressure pump
  • Geyser operating off gas or off 220 volts
  • Drawers and/or sliding drawers
  • Material options for curtains (curtains can also be made up from supplied material)
  • Spare wheel with different storage locations
  • Alloy rims
  • Mud flaps

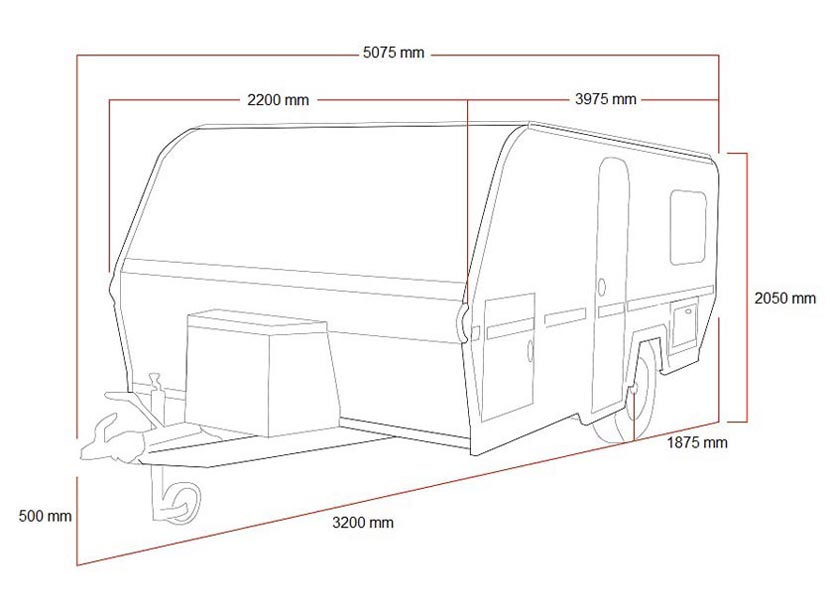

Technical Details

  • Overall length – 5075mm
  • Caravan length – 3975mm
  • Overall width - 2200mm
  • Wheelbase/track – 1900mm
  • Outside height (pop – top closed) - 2040mm
  • Weight from - 1050Kg
  • Tyre size - 245 x 15

Available Layout Options

- Download Ferox A Layout

- Download Ferox B Layout

- Download Ferox C Layout
